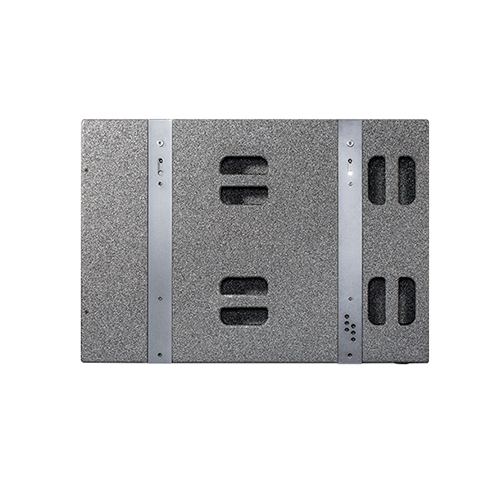

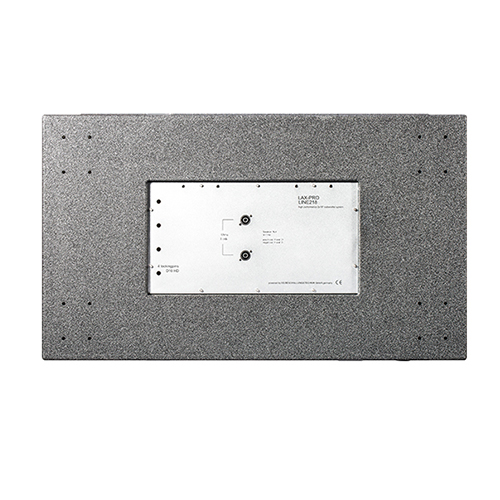

SUB218

PRODUCT DESCRIPTION

Classic subwoofer
The sound from the SUB218 is suitable for large indoor spaces: not only at 80 Hz, but even at an altitude of more than one octave, it always maintains high efficiency. Its low frequency is not only strong, but also high in sound quality. This outstanding performance is due to the use of two high-performance 18" long-stroke woofers. The relatively light moving mass of the paper tray combined with the push-pull technology gives it a very fast response.

APPLICATION

Large PA system
Open-air plaza
chapel
Disco & Nightclub

FEATURE

  • Two-way active coaxial system
  • High-efficiency and high-power PWM amplifier circuit, no fan cooling required
  • FIRTEC™ unique DSP processing technology
  • Input can receive digital (AES standard) signal and analog signal
  • Standard network protocol control system for real-time detection of signal and temperature status



SPECIFICATIONS

Frequency Response 36-200 Hz +-3dB
Power 1800 Wrms (900W + 900W) at 4 ohms
SPL 138 dBpeak
Dispersion  (H/V)

Spherical Pointing

Sensitivity(1w/1m)

105dB

Driving unit

2 x 18"- Conical driver

Power amplifier

K4

Controller

K-CORE

Dimensions(H x W x D)
564 x 982 x 800 mm
Weight
66kg
Features
Integrated Line Array Plug-in
