TH915

Single 15" Two-Way Full Range Speaker

APPLICATION


The TH915 is a two-way passive loudspeaker featuring a 15" driver with a 3" copper voice coil designed to work at very high sound pressure levels. The high frequency is handled by a titanium compression driver with a 1.4" diaphragm and a 3" aluminium voice coil.
The TH915 is ideally suited for applications requiring high power such as entertainment venues houses of worship foyer areas meeting rooms and most medium throw applications.

The TH915 is made from extremely high quality Baltic birch plywood and features a wedge-bonded enclosure which is screwed and glued for maximum strength and rigidity. The enclosure is fitted with 12 x M10 flying points allowing for horizontal or vertical mounting.

FEATURES


  • A high quality titanium compression driver with a 1.4" horn throat and a 75 mm aluminium voice coil.
  • The 15" low frequency driver is a high output driver featuring a 75 mm (3") copper voice coil and can operate at high SPL.
  • The LF driver is designed to provide very good BL and punch and features an excellent linear response down to 50 Hz with very low distortion characteristics.
  • Precision-made 24 mm 18 mm and 15 mm Baltic birch plywood cabinet (up to 15-ply) is finished with durable paint and wedge-bonded for additional strength and rigidity.
  • Reinforced V-Slot grille reduces internal vibration noise.
  • Designed for high-end fixed-installation and portable applications.
  • Recommended for use with S118B WS118B AT218B and T18B-V2 Subwoofers.






SPECIFICATIONS

Frequency Response 40 Hz - 18 kHz (±3 dB) / 35 Hz - 20 kHz (-10 dB)
Dispersion (H x V) 60° x 40° Rotatable
Sensitivity (1 W / 1 m)
102 dB
SPL (1 m) 128 dB (Continuous) 134 dB (Peak)
Power Rating (AES)

450 W

Nominal Impedance 4 ohm
Driver

HF: 1 x 1.4" Ferrite / 75 mm Voice Coil

LF: 1 x 15" Ferrite / 75 mm Voice Coil

Enclosure

Phase Inverted

Fittings

M 10 Flying Points x 12 Pole Mount Socket

Crossover 1.3 kHz
Connectors

NEUTRIK NL4MP x 2

Full: 1 + 1-

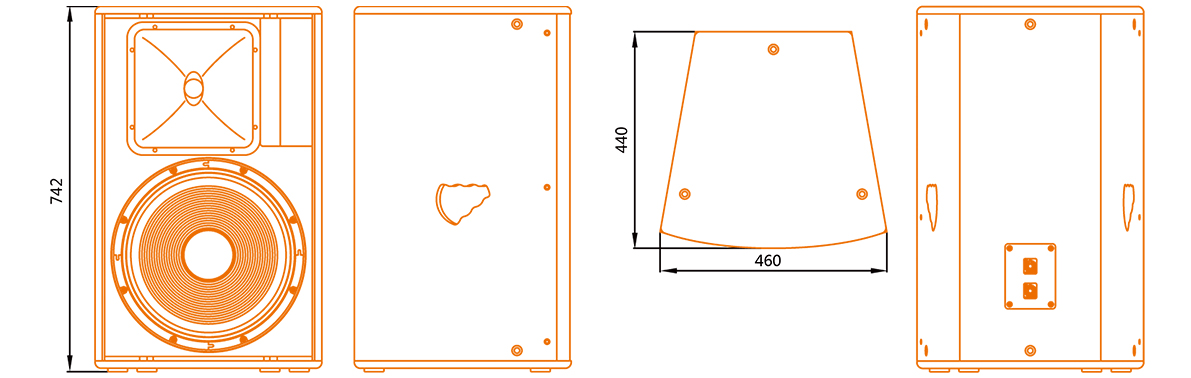

Dimensions (W x D x H)
460 x 440 x 742 mm
Net Weight
30 kg




ACCESSORIES

TPYE ITEM NUMBER DETAILS IMAGE
Wall Bracket TH915 BK Wall Bracket
