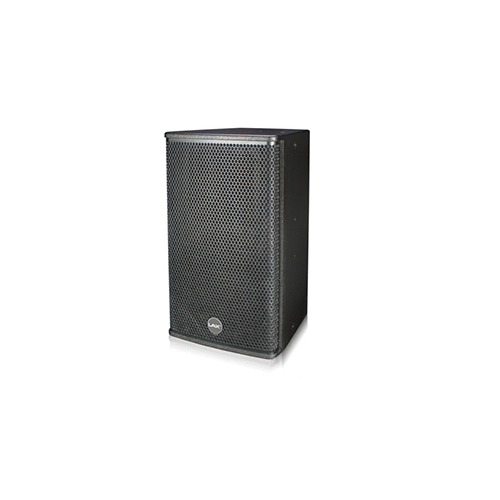

RS208

APPLICATION

KTV

Live Music Clubs

Bars

FEATURES

  • 8″ high efficiency woofer designSpecial waterproof coating
  • 1″ Titanium compression driver with 38mm voice coil
  • The design of the back phase box increase the low frequency energy
  • 80°×80° wide directivity horn
  • Precision engineered crossover for optimal driver integration
  • Rotatable LAX ENTERTAINMENT logo for both horizontal and vertical applications



SPECIFICATIONS

Frequency Response 70Hz - 20kHz
Sensitivity (1W / 1m) 91dB
Nominal Impedance
8 ohm
Power Rating (AES) 200W
Driver

LF: 1 x 8" - (Ferrite)/ 51 mm(Voice Coil)

HF: 1 x 1" - (Ferrite)/ 38 mm(Voice Coil)

Dispersion (H×V) 80° × 80°
SPL
114dB (continuous), 120dB(Peak)
Fittings 17×M8(Flying Points,Pole Mount Socket)
Connectors

NEUTIK NL4MP x2

FULL IN :1+1-

Finish Black water-based paint
Dimensions(W×D×H)
248 × 240 × 414 mm
Net Weight ( kg )
9.3kg
