U15S
  • Info
  • Specifications
  • System Accessories
  • Measurement Data
  • Downloads

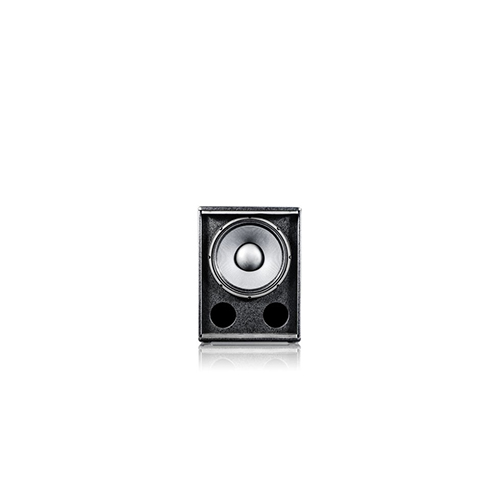

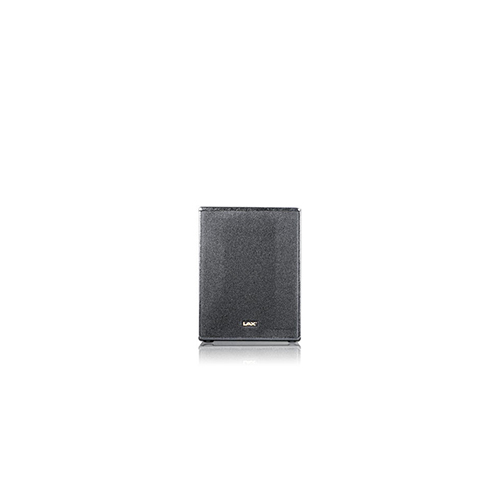

U15S

Single 15" Subbwoofer

APPLICATIONS

The U Series is a feature-rich range of products specifically designed for a diverse and flexible range of installation applications. You could quite literally use the U Series anywhere that requires high quality audio for main or fill speaker duties. The sizes are perfectly suited to any environment whilst maintaining a very high sound quality across the whole series.

We designed the U Series as a cost-effective and scalable solution which is both versatile and practical. The design methodology was to create a range of speakers which would allow the system integrator or consultant to feel highly confident when specifying U Series for a multitude of applications from a conference room to a balcony fill speaker.

FEATURES


  • Direct radiating subwoofer enclosure.
  • Single 15" high performance driver.
  • Pole mounted socket.
  • Ideal for U08E sub bass extension



SPECIFICATIONS

Frequency Response 40 Hz - 250 Hz
Sensitivity (1 W / 1 m) 98 dB
SPL (1 m) 126 dB (Continuous)   /  132 dB (Peak)
Power rating (AES)

600 W

Nominal Impedance

8 ohm

Driver LF: 1 x 15" Ferrite  / 100 mm Voice Coil

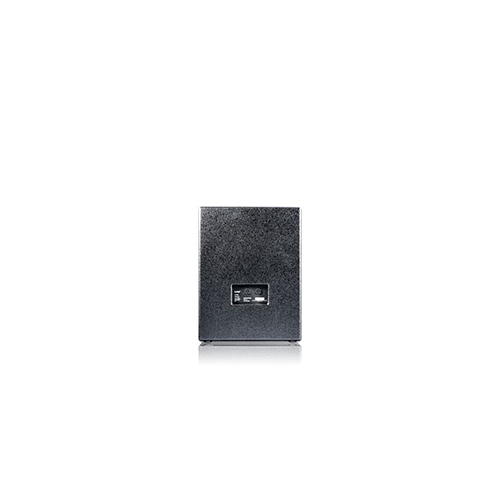

Connectors

NEUTRIK® NL4MP x 2

LF: 2+2-

CFittings

Spring Terminals

Fittings
Top Pole-Mount Socket
Dimensions (W x D x H)
480 x 515 x 640 mm
Net Weight
37 kg
