OPERATION T18B-V2

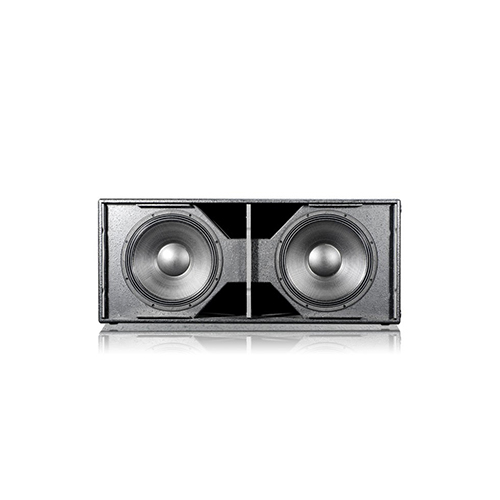

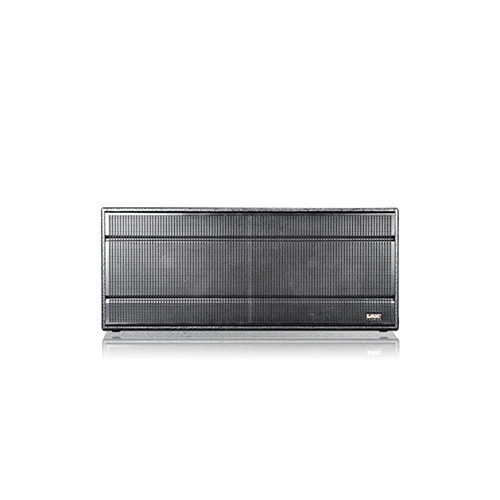

Dual 18" Subwoofer

APPLICATIONS

The OPERATION T18-V2 is a dual 18" subwoofer designed to be ground stacked and used with the OPERATION T12 Line Array System. The T18-V2 is also suitable for all LAX line array systems portable full-range and installation speakers especially where extremely high quality reproduction of low frequency sound is required.

The specially selected European components are designed to offer uncompromised quality and reliability.

FEATURES

  • High powered 2400 W subwoofer with 2 x 18" drivers with a 100 mm (4") copper voice coil designed and manufactured by B&C in Italy.
  • The drivers feature an aluminium demodulating ring designed to reduce distortion and a ventilated voice-coil gap for reduced power compression.
  • Precision-made 15-ply 24 mm and 11-ply 18 mm Baltic birch plywood cabinet with a durable paint finish for touring and rental use.
  • Designed to be ground stacked in various array configurations.
  • Very high SPL capabilit
  • Low frequency extends down to 25 Hz (@ -10dB).
  • Designed for touring outdoor concerts stadiums fixed installation and for all demanding sound reinforcement applications.
  • Recommended for use with T12 and ATEC Line Array Systems and FP full-range speaker systems.



SPECIFICATIONS

Frequency Response 30 Hz - 200 Hz (± 3 dB) / 25 Hz (-10 dB)
Sensitivity (1 W / 1 m) 105 dB
SPL
138 dB (Continuous) 144 dB (Peak)
Power Rating (AES) 2400 W
Nominated Impedance
4 ohm
Driver

LF: 2 x 18" Ferrite Woofer / 100 mm Voice Coil

Enclosure

Phase Inverted

Fittings

Operation T12 FK

Connectors

NEUTRIK NL4MP x 2

LF: 2+2-

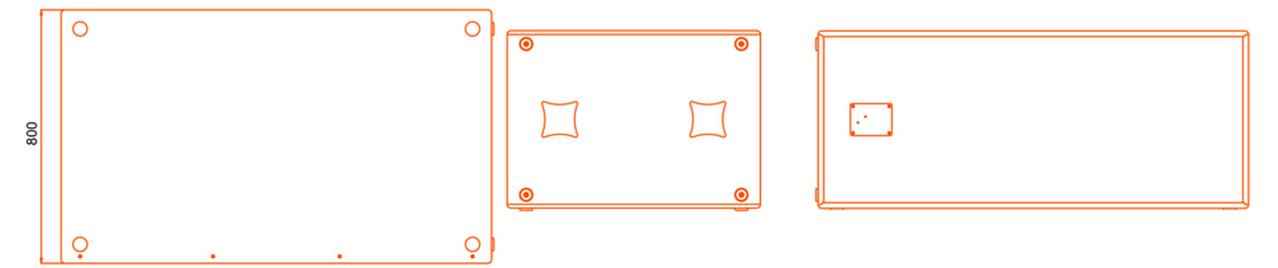

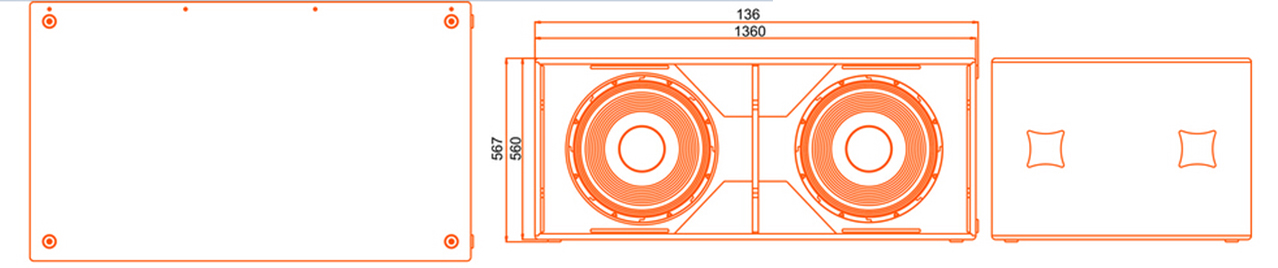

Dimensions (W x D x H) 1367 x 800 x 567 mm
Net Weight
89 kg




ACCESSORIES

TYPE ITEM NUMBER DETAILS IMAGE
Flight Case OPERATION T18B-V2 FLC Flight Case for OPERATION T18B / T18B-V2 (1 in 1)
Cable CB2002NL4

20 Metre 2 core (2 x 4 mm) Speaker cable with

4 pole NEUTRIK connectors (NL4FX) for OPERATION T18B / T18B-V2
