ATL118BA
  • Info
  • Specifications
  • System Accessories
  • Measurement Data
  • Downloads

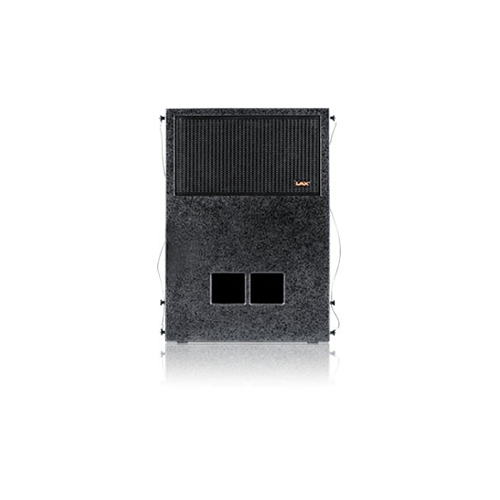

ATL118BA

Single 18" Active Subwoofer

APPLICATIONS

For the powered ATEC series we partnered with one of the world's leading amplifier manufacturers to create a high powered active double 18" subwoofer using the most efficient Class D amplifier design and the very latest high-current Switch-Mode Power Supply technology.

The ATL118BA-V2 is designed to be flown in AT208A line array systems and features extremely high quality cabinets made from Baltic birch plywood. Because we design and build our products in our own manufacturing facility in China you can be assured of our commitment to producing an extremely high quality product.

Furthermore our in-house R&D centre is also home to an impressive measurement and testing lab where we rigorously check every product for sonic quality safety of rigging systems exposure to dust and moisture and electronic safety and emissions. We stand by the quality of our products we build them right and we build them to go the distance.

FEATURES

  • Powerful 900 W subwoofer featuring a single 18" driver with a 100 mm (4") dual layer voice coil providing more surface area for strength and durability.
  • Precision-made 15-ply 24 mm and 11-ply 18 mm Baltic birch plywood cabinet with a durable paint finish for touring and rental use.
  • Optimized cabinet structure designed to reduce unwanted resonances and airflow noise.
  • Band-pass subwoofer enclosure.
  • Low frequency extends down to 30 Hz (@ -10dB).
  • Built-in Class D amplifier designed in Europe.
  • Ethernet port for network access from a PC/Mac to make critical and remote DSP adjustments.
  • The LF driver features a humidity resistant cone.
  • The integrated rigging system has a 7:1 safety coefficient.
  • Designed for touring outdoor concerts stadiums fixed installation and for all demanding sound reinforcement applications.
  • Designed to be flown in ATEC AT208A Line Array Systems.
  • Recommended for ground stacking with all ATEC and Novo Line Array Systems AR Curve Array Systems FP and all full-range speaker systems.



SPECIFICATIONS

Frequency Response 45Hz - 125kHz (+-3dB)
Sensitivity (1 W / 1 m) 103 dB
Nominal Impedance
8 ohm
Power Rating (AES) 900 W
Driver
8LF: 1 x 18" Ferrite Woofer / 100mm Voice Coil
Enclosure

Band Pass

SPL

131 dB (Continuous) 137 dB (Peak)

XLR male (output) x 1

Ethernet socket x 1

NEUTRIK® powerCON (input) x 1

NEUTRIK® powerCON (out) x 1

Power Output

1 x 1400 W @ 8 ohm

Power Supply
PowerCON Input / Output
Amplifier Class-D SMPS
Protect Circuit
Short Circuit overheating and power stage overload
DSP
Build-in DSP system processor
Dimensions (W x D x H)
550 x 800 x 775 mm
Net Weight
75 k




ACCESSORIES

TYPE ITEM NUMBER DETAILS IMAGE
Flight Case ATL118BA FLC Flight Case for ATL118BA (1 in 1)
