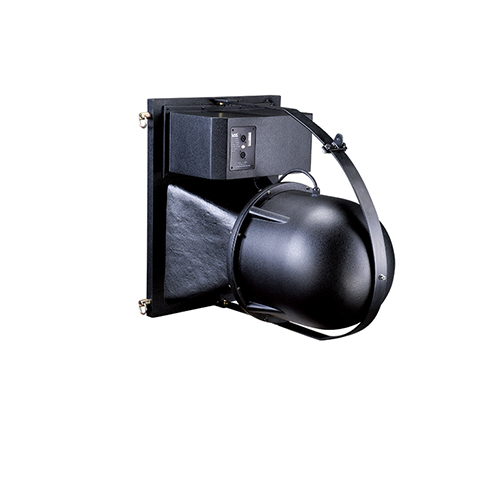

The OP Horn is a stand-alone loudspeaker system designed to meet the specific requirements of large-scale installations such as arenas and stadiums. The frequency range is an extended mid to high system for delivery of exceptional speech intelligibility and high sound pressure level over its coverage pattern.
The OP Horn features a waterproof design and comes in two versions offering either a 60º x 40º coverage pattern (OP2112H/64) or a 90º x 60º coverage pattern (OP2112H/96).
Large scale outdoor place (stadium theme park) Long throw diffusion.
| Frequency Response |
100 Hz - 16 kHz (±3 dB) / 90 Hz - 20 kHz (-10 dB) |
| Dispersion (H x V) | OP2112H / 96: 90°x 60° |
|
Driver |
LF: 1 x 12" / 75 mm Voice Coil HF: 1 x 1.4" / 72 mm Voice Coil |
| Power Rating (AES) | 300 W (continuous) 600 W (peak) |
|
Nominal Impedance |
8 ohm |
| Driver |
HF: 1 x 1.4" / 72 mm Voice Coil LF: 1 x 12" / 75 mm Voice Coil |
|
Connection |
2 x NEUTRIK® NL4MP Full: 1+1- |
|
Fittings |
4 x rigging rings
2 x M16 Flying points
|
|
SPL (1 m) |
OP2112H/ 96: 130 dB (continuous) / 136 dB (peak) |
| Dimensions (W x H x D) | 610 x 778 x 698 mm |
|
Net weight |
45 kg |
| TYPE | ITEM NUMBER | DETAILS | IMAGE |
| Flying Kit | OP2112H - FK | OP Horn Flying Kit |
|
