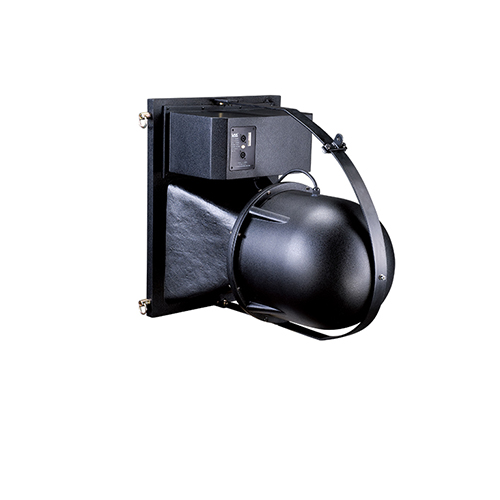

OP2112H / 64

Long Throw Horn

APPLICATIONS

The OP Horn is a stand-alone loudspeaker system designed to meet the specific requirements of large-scale installations such as arenas and stadiums. The frequency range is an extended mid to high system for delivery of exceptional speech intelligibility and high sound pressure level over its coverage pattern.

The OP Horn features a waterproof design and comes in two versions offering either a 60º x 40º coverage pattern (OP2112H / 64) or a 90º x 60º coverage pattern (OP2112H / 96).

FEATURES

  • 2-Way horn cabinet.
  • Single 12" woofer.
  • 90 Hz - 20 kHz frequency response (@ -10 dB).
  • Epoxy FRP finishing for use in hard weather condition.
  • High intelligibility at long distance.
  • Can be used with sub bass extension for music reproduction.



SPECIFICATIONS

Frequency Response 100 Hz - 16 kHz (±3 dB) / 90 Hz - 20 kHz (-10 dB)
Dispersion (H x V) 60° x  40°
System sensitivity(1 W / 1 m)
131 dB (continuous) / 137 dB (peak)
Power Rating (AES) 300 W (continuous) 600 W (peak)
Nominal Impedance
8 ohm
Driver

HF: 1 x 1.4" / 72 mm Voice Coil

LF: 1 x 12" / 75 mm Voice Coil

Connection

2  x NEUTRIK® NL4MP

Full: 1+1-

Fittings

Rigging Rings x 4

M16 Flying Points x 2

SPL (1m) OP2112H / 64: 130dB (continuous) / 137dB (peak)

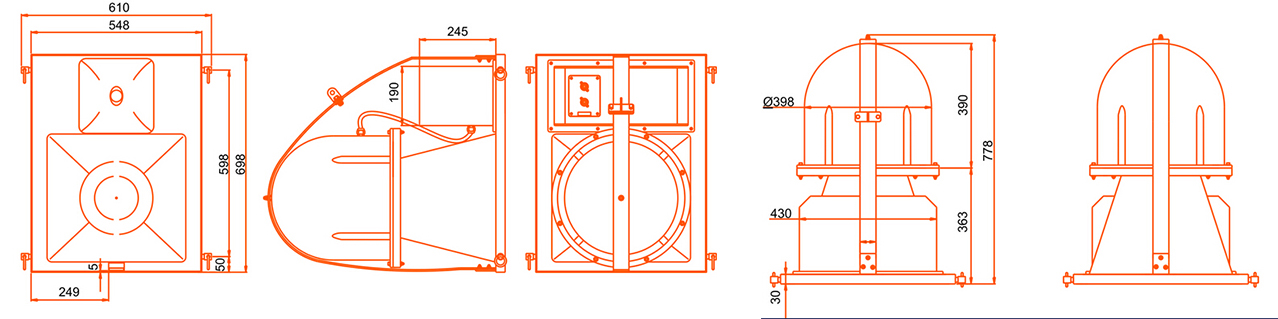

Dimensions (W x H x D)
610 x 778 x 698 mm
Net weight 45 kg





ACCESSORIES

TYPE ITEM NUMBER DETAILS IMAGE
Flying Kit OP2112H - FK OP Horn Flying Kit
