C8

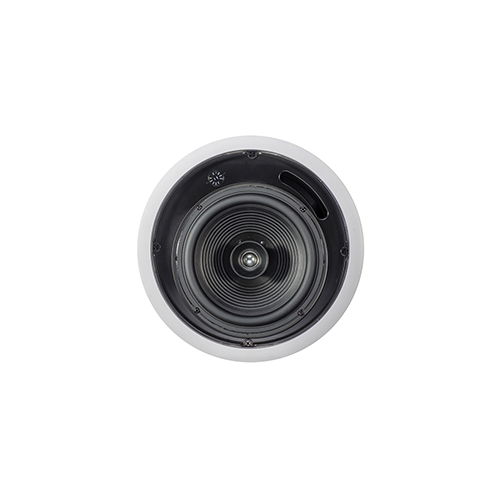

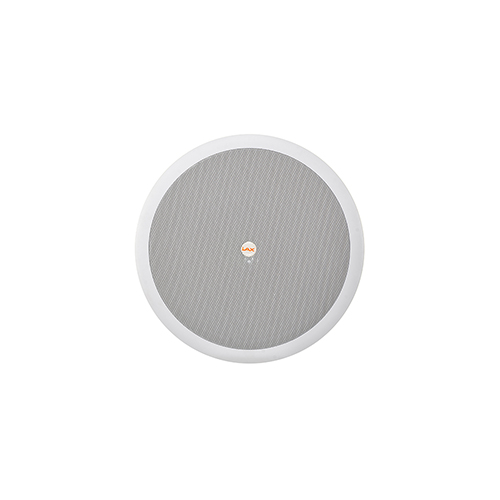

Ceiling Speaker

APPLICATIONS

Conference room, Lecture hall, Auditorium, Dinning room, Mall, Supermarket, Hotel.

FEATURE

According to the market requirements, LAX develops coaxial ceiling speaker of the brand - new C Series. Voltage Input and electric resistance are optional, Voltage Input (100V and 70V) and electric resistance (16ohms) are available for different occasions. Installation is flexible with only hole size of the ceiling should be considered.




SPECIFICATIONS

Frequency Response 105Hz - 20kHz
Sensitivity (1W / 1M) 90 + 2dB
Power Rating (AES) 80W
Driver

LF: 8"pp cone

HF: 20 mm horn voice coil

Diameter Out Circle

271 mm

Hole Depth 238 mm
Net Weigt

6.5 kg

INPUT MODE

C8

100V (80W @ 133ohm / 40W @ 245ohm / 20W @ 490ohm)

70V (80W @ 61ohm / 40W @ 133ohm / 20W @ 245ohm / 7.5W @ 490ohm)

Bypass 16ohm
