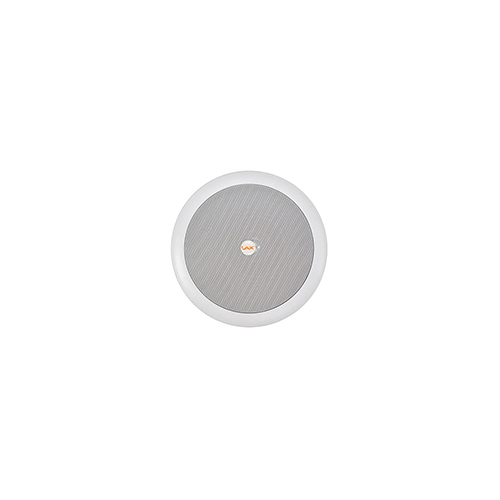

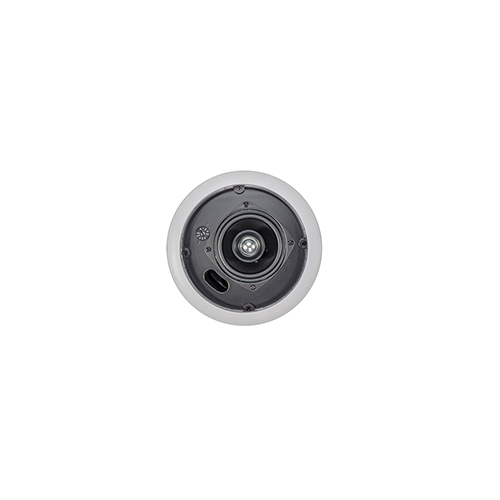

Ceiling Speaker
Conference room, Lecture hall, Auditorium, Dinning room, Mall, Supermarket, Hotel.
According to the market requirements, LAX develops coaxial ceiling speaker of the brand - new C Series. Voltage Input and electric resistance are optional, Voltage Input (100V and 70V) and electric resistance (16ohms) are available for different occasions. Installation is flexible with only hole size of the ceiling should be considered.
| Frequency Response |
148Hz - 20kHz |
| Sensitivity (1W / 1M) | 85 + 2dB |
| Power Rating (AES) | 30W |
| Driver |
LF: 4"pp cone HF: 20 mm horn voice coil |
| Diameter Out Circle |
182 mm |
| Hole Depth | 126 mm |
|
Net Weigt |
2 kg
|
| C4 |
100V (60W @ 167ohm / 30W @ 333ohm / 15W @ 667ohm) 70V (60W @ 82ohm / 30W @ 167ohm / 15W @ 333ohm / 7.5W @ 667ohm) Bypass 16ohm |
