U04
  • Info
  • Specifications
  • System Accessories
  • Measurement Data
  • Downloads

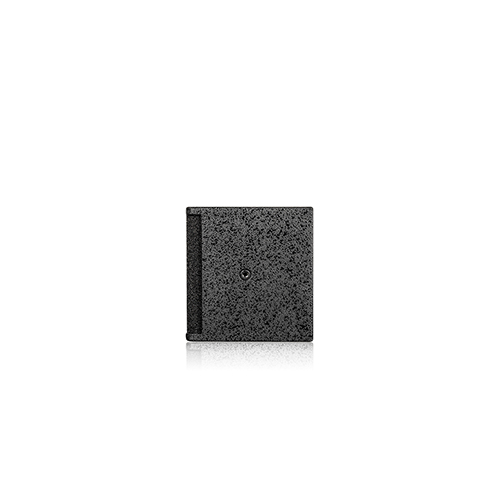

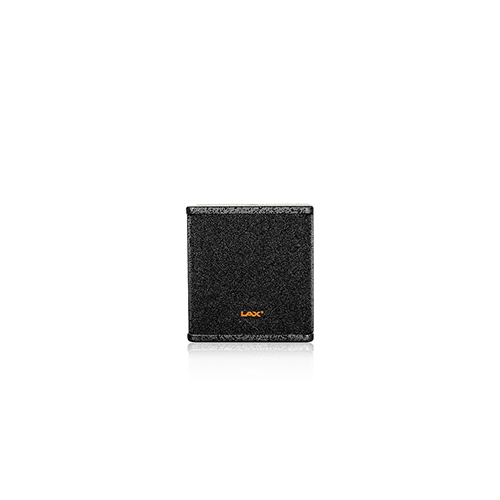

U04

Single 4.5" Full Range Speaker

The U Series is a feature-rich range of products specifically designed for a diverse and flexible range of installation applications. You could quite literally use the U Series anywhere that requires high quality audio for main or fill speaker duties. The sizes are perfectly suited to any environment whilst maintaining a very high sound quality across the whole series.

We designed the U Series as a cost-effective and scalable solution which is both versatile and practical. The design methodology was to create a range of speakers which would allow the system integrator or consultant to feel highly confident when specifying U Series for a multitude of applications from a conference room to a balcony fill speaker.

APPLICATIONS

Main Speaker in Conference Room or Hall Background Music in Restaurant and Shopping Mall Surround and Side Fill for Multi-Purpose Hall and Auditorium and Night Club.

FEATURES

  • New design U04 use the integration of aluminum alloy cabinet, flexible for different color.
  • Single 4.5" full - range driver working from 140Hz (@+-10dB)
  • Easy hanging with bracket or on a microphone stand.
  • Ultra - compact design and wide sound definition.



SPECIFICATIONS

Frequency Response 150 Hz - 16 kHz (±4 dB)/130 Hz - 20 kHz (-10 dB)
Dispersion (H x V) 60° x 60°
Sensitivity (1 W / 1 m) 92dB
SPL (1m)

109dB (Continuous) / 115dB (Peak)

Power Rating (AES)

50W

Nominal Impedance 8 ohm
Driver

4.5" Full Range Driver / 25 mm Voice Coil

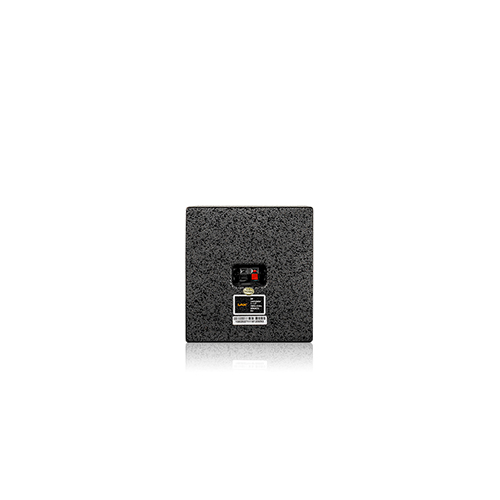

Connectors

Spring Terminals

Fittings
U04FK
Enclosure
Sealed

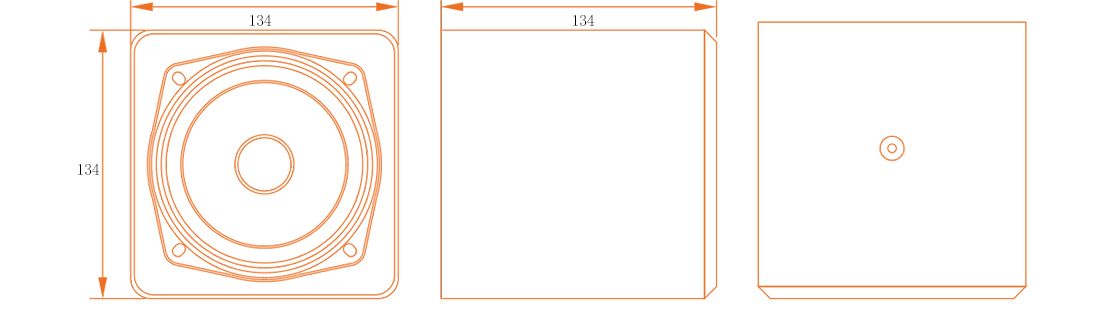

Dimensions (W x D x H)
150 x 155  x 160 mm
Net Weight
2.7 kg





ACCESSORIES

TYPE ITEM NUMBER DETAILS IMAGE
Wall Bracket U04 BK Wall Bracket
