U26
  • Info
  • Specifications
  • System Accessories
  • Measurement Data
  • Downloads

U26

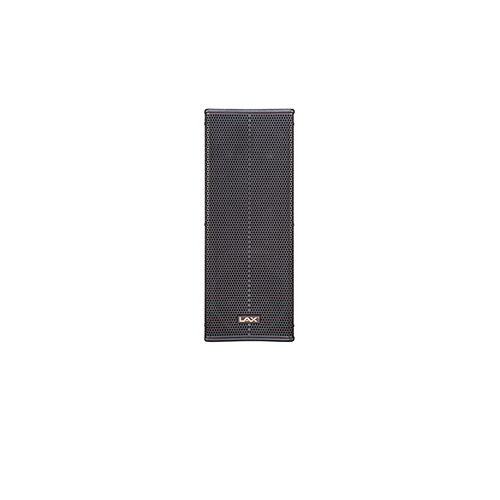

Double 6" Full Range Speaker

FEATURES


  • High definition sound suitable for conference hall and performing venue.
  • High de inition sound.
  • Pole - mount socket.



SPECIFICATIONS


Frequency Response 100Hz - 18Hz (+- 3dB) / 85Hz - 20Hz (-10dB)
Dispersion (H x V) 90° x 60°
Sensitivity (1 W / 1 m) 96dB
SPL (1m)

122dB (Continuous) / 128dB (Peak)

Power Rating (AES)

400W

Nominal Impedance 4 ohm

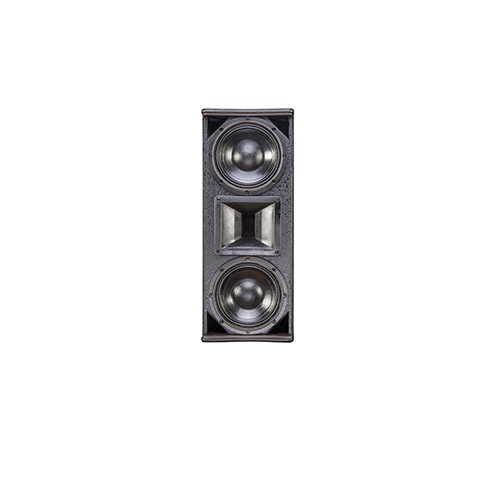

Driver

HF: 1 x Ferrite / 44mm Voice Coil

LF: 2 x 6.5 Ferrite

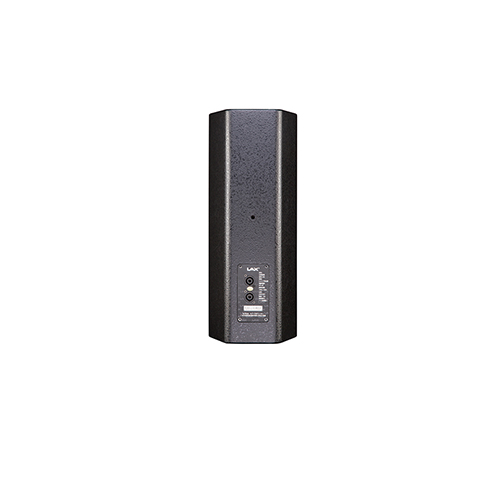

Connectors

NEUTRIK @ NL4MP x 2  Full: 1+1-

Fittings
M 10 Flying Points x 4, Pole Mount Socket

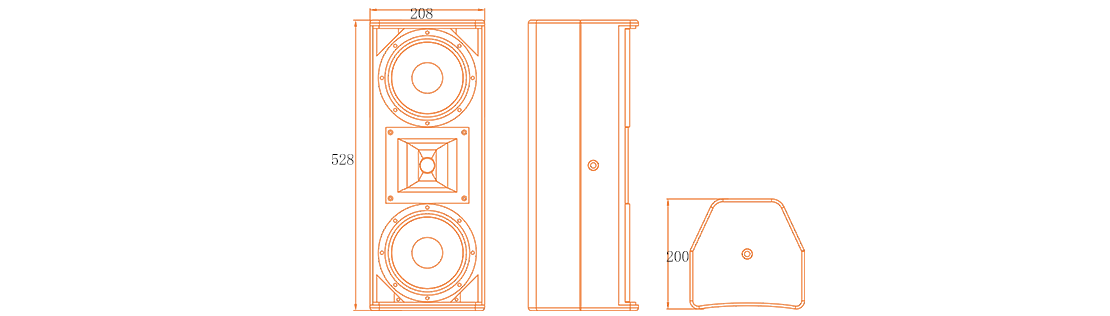

Dimensions (W x D x H)
208 x 200 x 528 mm
