FP110
  • Info
  • Specifications
  • System Accessories
  • Measurement Data
  • Downloads

FP110

Single 10" Two - Way Full Range Speaker

APPLICATIONS

The FP Series is our top of the range high performance 2-way portable loudspeaker series designed for installation and portable applications and features the highest quality European components and wedge-bonded Baltic plywood enclosures.

FEATURES

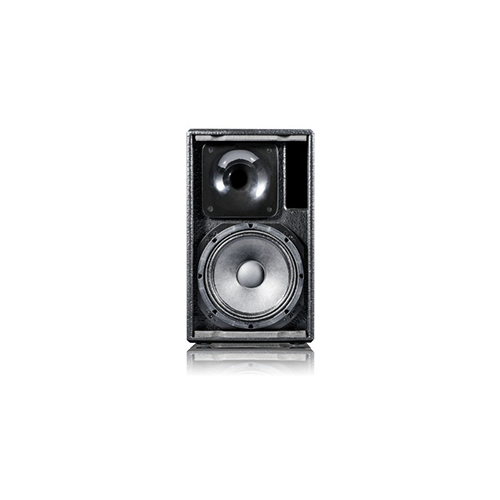

  • The HF is handled by a 1" compression driver provides a transparent and smooth mid high frequency response and high sound pressure levels.
  • The 10" low and mid frequency driver - designed and manufactured by Eighteen Sound in Italy - is a high output neodymium driver featuring a 65 mm Interleaved
  • Sandwich Voice coil (ISV) designed to improve sensitivity and dispersion.
  • Precision-made 18 mm and 15 mm Baltic birch plywood cabinet (up to 11-ply) is finished with durable paint and wedge-bonded for additional strength and rigidity.
  • Low distortion especially at high sound pressure levels.
  • Reinforced V-Slot grille reduces internal vibration noise.
  • Designed for high-end fixed-installation and portable applications.
  • Recommended for use with S118B, WS118B, AT218B, and T18B-V2 Subwoofers.




SPECIFICATIONS

Frequency Response 60Hz - 25Hz (+- 3dB) / 50Hz - 27kHz (-10dB)
Dispersion (H x V) 80° x 80°
Sensitivity (1W / 1m) 98dB
SPL (1 m)

123 dB (continuous) / 129 dB (Peak)

Power Rating (AES)

300W

Nominal Impendance 4 ohm
Driver

HF: 1 x 1" Neodymium / 44 mm Voice Coil

LF: 1 x 10" Neodymium / 65 mm Voice Coil

Crossover

1.6 kHz

Connectors
NEUTRIK NL4MP x 2   Full: 1+1-
Enclosure
Phase Inverted
Fittings
M 10 Flying Points x 12, Pole Mount Socket

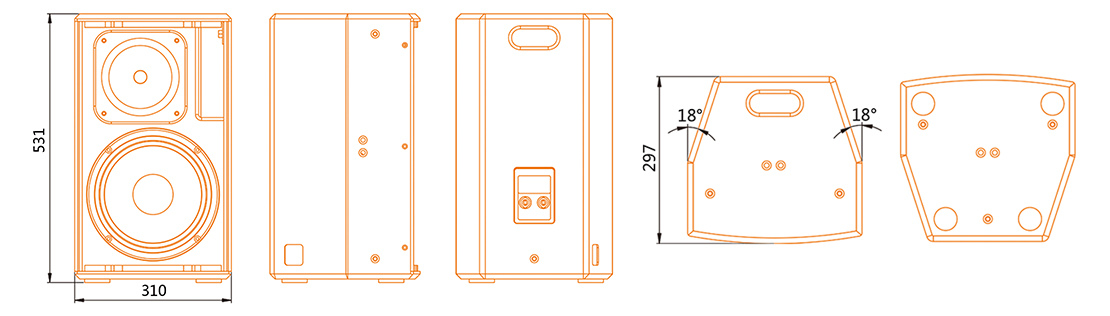

Dimensions (W x D x H)
310 x 297 x 531 mm
Net Weight
18.4 kg





ACCESSORIES

TYPE ITEM NUMBER DETAILS IMAGE
Wall Bracket FP110 BK Wall Bracket
