FP112

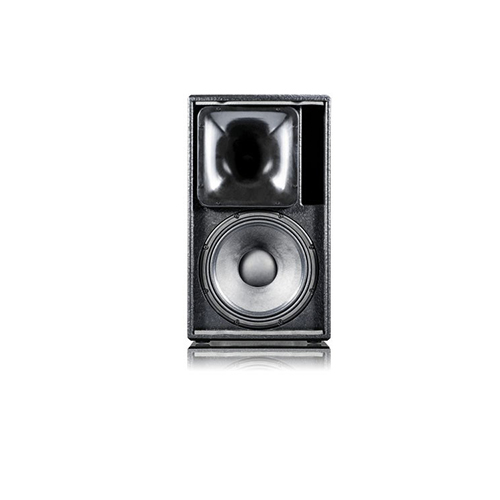

Single 12" Two - Way Full Range Speaker

APPLICATIONS

The FP Series is our top of the range high performance 2-way portable loudspeaker series designed for installation and portable applications and features the highest quality European components and wedge-bonded Baltic plywood enclosures.

FEATURES

  • A high quality titanium compression driver with a 1.4" horn throat and a 75 mm (3") aluminium voice coil designed and manufactured in Italy by B&C.
  • The 12" low and mid frequency driver - designed and manufactured by RCF in Italy - is a high output driver featuring a 75 mm (3") copper voice coil and can operate at high SPL.
  • The Copper voice coil suspension and cone materials have been specially designed to survive at 450 W RMS power.
  • The LF driver is designed to provide very good BL and punch and features an excellent linear response down to 50 Hz with very low distortion characteristics.
  • Precision-made 18 mm and 15 mm Baltic birch plywood cabinet (up to 11-ply) is finished with durable paint and wedge-bonded for additional strength and rigidity.

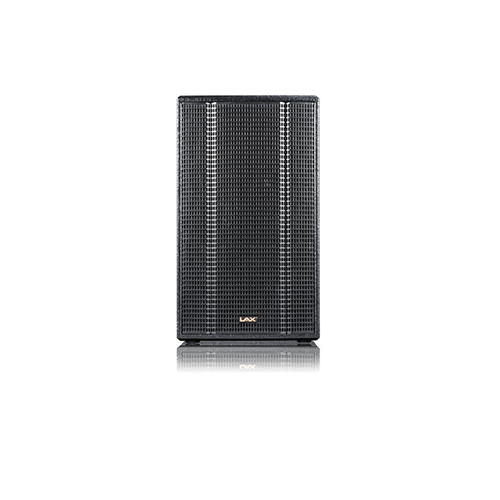

  • Reinforced V-Slot grille reduces internal vibration noise.
  • Designed for high-end fixed-installation and portable applications.
  • Recommended for use with S118B WS118B AT218B and T18B-V2 Subwoofers.



SPECIFICATIONS

Frequency Response 50Hz - 18Hz (+- 3dB) / 40Hz - 20kHz (-10dB)
Dispersion (H x V) 60° x 40° Rotatable
Sensitivity (1W / 1m) 97dB
SPL (1 m)

123 dB (continuous) / 129 dB (Peak)

Power Rating (AES)

400W

Nominal Impendance 8 ohm
Driver

HF: 1 x 1.4" Neodymium / 75 mm Voice Coil

LF: 1 x 12" Ferrite / 75 mm Voice Coil

Crossover

1.3 kHz

Enclosure
Phase Inverted
Fittings
M 10 Flying Points x 12 Pole Mount Socket

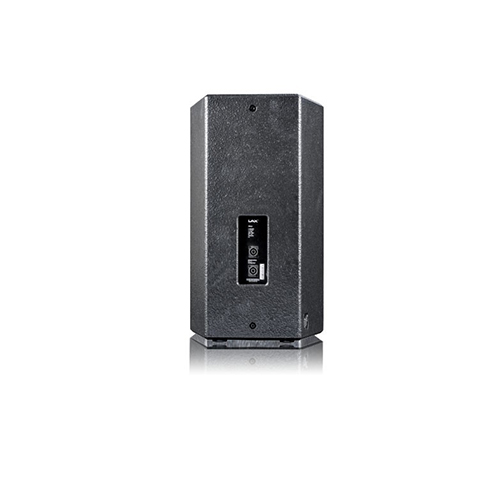

Connectors
NEUTRIK NL4MP x 2 Full: 1+1-

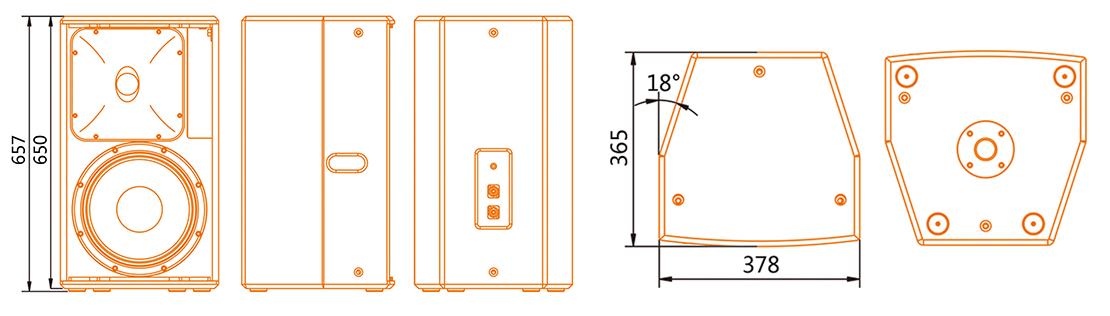

Dimensions (W x D x H)
378 x 365 x 650 mm
Net Weight
29 kg




ACCESSORIES

TYPE ITEM NUMBER DETAILS IMAGE
Wall Bracket FP112 BK Wall Bracket
