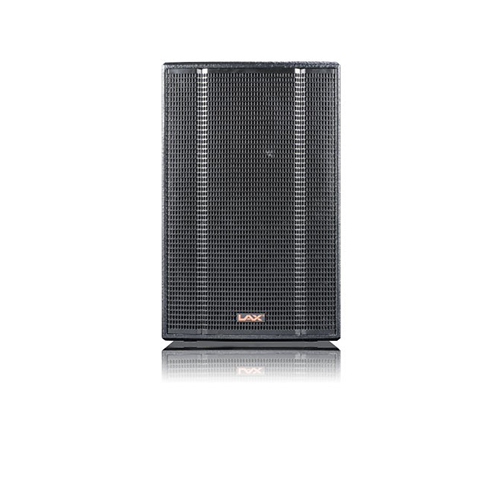

FP115

Single 15" Two - Way Full Range Speaker

APPLICATIONS

The FP Series is our top of the range high performance 2-way portable loudspeaker series designed for installation and portable applications and features the highest quality European components and wedge-bonded Baltic plywood enclosures.

FEATURES

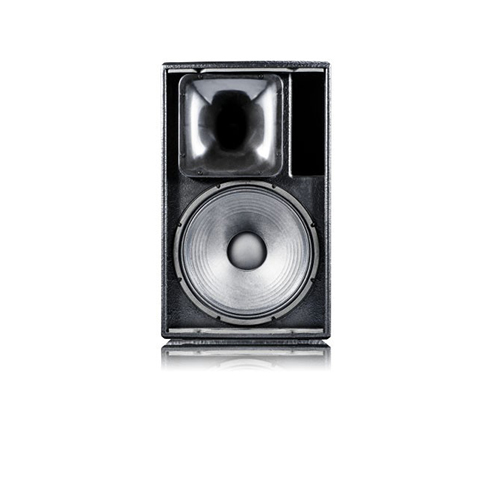

  • A high quality titanium compression driver with a 1.4" horn throat and a 75 mm (3") aluminium voice coil, designed and manufactured in Italy by B&C.
  • The 15" low and mid frequency driver - designed and manufactured by RCF in Italy - is a high output driver featuring a 75 mm (3") edgewound aluminium voice coil designed to provide a very high efficiency and a proper Q for excellent bass response.
  • The LF driver exhibits very high sensitivity and excellent linearity down to 40 Hz with very low distortion characteristics. It features very efficient heat dissipation from a sealed spider which is designed to force air into the radiator.
  • Precision-made 24 mm, 18 mm and 15 mm Baltic birch plywood cabinet (up to 15-ply) is finished with durable paint and wedge-bonded for additional strength and rigidity.
  • Reinforced V-Slot grille reduces internal vibration noise.
  • Designed for high-end fixed-installation and portable applications.
  • Recommended for use with S118B, WS118B, AT218B, and T18B-V2 Subwoofers.




SPECIFICATIONS

Frequency Response 40Hz - 18Hz (+- 3dB) / 30Hz - 20kHz (-10dB)
Dispersion (H x V) 60° x 40° Rotatable
Sensitivity (1W / 1m) 100dB
SPL (1 m)

126 dB (continuous) / 132 dB (Peak)

Power Rating (AES)

400W

Nominal Impendance 8 ohm
Driver

HF: 1 x 15" Ferrite / 75 mm Voice Coil

LF: 1 x 1.4" Neodymium / 75 mm Voice Coil

Crossover

1.3 kHz

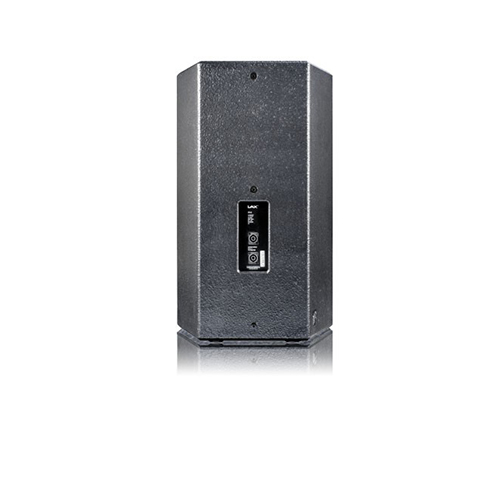

Connectors
NEUTRIK NL4MP x 2 Full: 1+1-
Enclosre
Phase Inverted
Fittings
M 10 Flying Points x 12, Pole Mount Socket

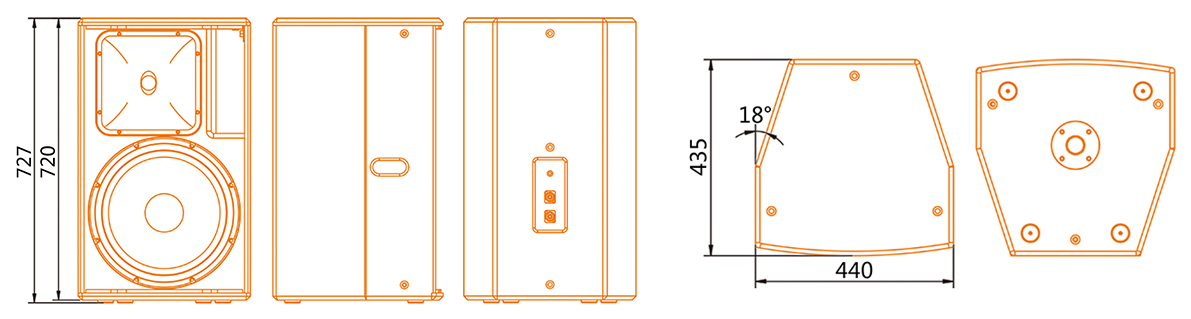

Dimensions (W x D x H)
440 x 435 x 720 mm
Net Weight
35 kg





ACCESSORIES

TYPE ITEM NUMBER DETAILS IMAGE
Wall Bracket FP115 BK Wall Bracket
