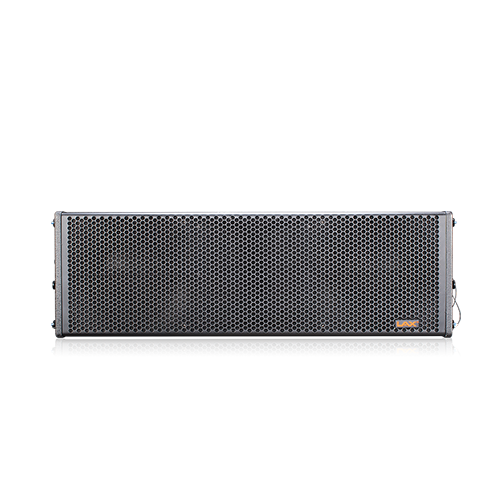

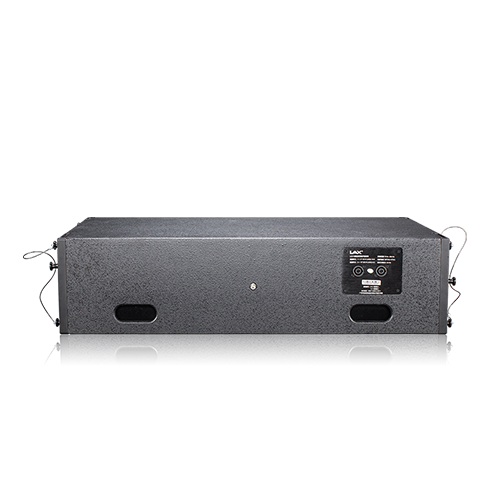

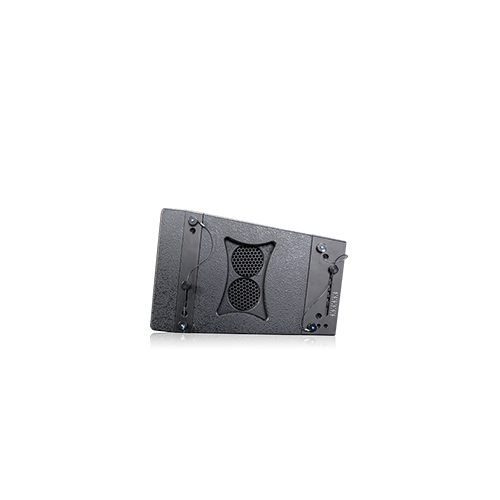

OPERATION T10
Dual 10" Two-Way Bi-Amp Line Array Speaker
FEATURES:
-
A high quality titanium compression driver with a 1.4" horn throat and a 75 mm (3") aluminium voice coil, designed and manufactured in Italy by B&C.
-
The low frequency driver - designed and manufactured by B&C in Italy - is a high out put neodymium driver featuring a 65 mm Interleaved Sandwich Voice coil (ISV),The LF driver has a humidity resistant paper cone. designed to improve sensitivity and dispersion.
-
A single demodulating ring (SDR) minimizes distortion.
-
Precision-made 24 mm, 18 mm and 15 mm Baltic birch plywood cabinet (up to 15-ply), and finished with durable paint for touring and rental use.
-
The integrated rigging system has a 7:1 safety coefficient.
-
Recommended for use with OP T212B, AT218B, or T18B-V2 Subwoofers.
-
Specially designed for large opening with high pitch to increase penetration rate.
-
Designed for a multitude of fixed-installation applications and outdoor use.
-
System with OP T212B, low frequency limit extended to 45Hz.
SPECIFICATIONS
Frequency Response
|
80Hz - 18Hz (+- 3dB) / 70Hz - 20Hz (- 10dB)
|
Dispersion ( H x V )
|
100° x 10°
|
Sensitivity (1W / 1m)
|
HF: 110dB LF: 103dB
|
SPL (1m)
|
HF: 133dB (Continuous) / 136dB (Peak)
LF: 133dB (Continuous) / 136dB (Peak)
|
Driver
|
LF: 2 x 10" Neodymium / 65mm Voice Coil
HF: 1 x 1.4" Ferrite / 75mm Voice Coil
|
Enclosure
|
Phase Inverted
|
Fittings
|
OP T10 Flying Kit
|
Power Rating (AES)
|
HF: 110W LF: 600W
|
Nominal Impedance
|
HF: 16 ohm LF: 8 ohm
|
Connectors
|
NEUTRIK NL4MP x 2 HF:2+2- LF:1+1-
|
Dimensions (W x D x H)
|
850 x 410 x 272 mm
|
Net Weight
|
33 kg
|
