AT110-V2

Info
Specifications
System Accessories
Measurement Data
Downloads

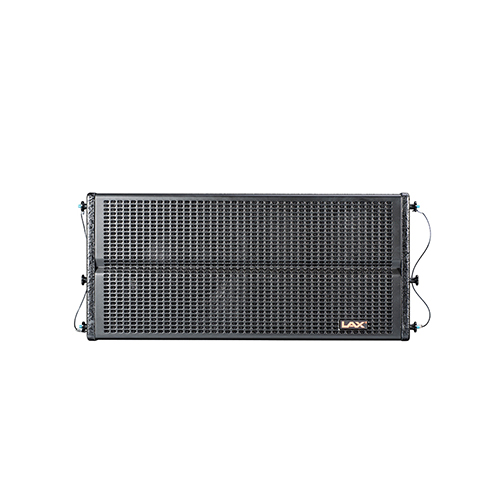

AT110-V2

Single 10" Two-Way Bi-Amp Line Array Speaker

APPLICATIONS

The AT110-V2 is a 10" two-way bi-amp line array speaker designed to cover a broad range of sound reinforcement applications whilst meeting the critical needs of the professional user.
Featuring drivers designed and manufactured in Italy and extremely high quality cabinets made from Baltic birch plywood you can be assured of our commitment to producing a high quality product. But it's more than that. Designed and built by LAX Pro at our state-of-the-art facility in China and using the very latest measurement and testing equipment in our R&D centre all our speakers are designed and rigorously tested for sonic quality safety of rigging systems and exposure to dust and moisture. We stand by the quality of our products and build them to go the distance.

FEATURES

A high quality titanium compression driver with a 1.4" horn throat and a 75 mm (3") aluminium voice coil designed and manufactured in Italy by B&C.

The low and mid frequency driver - designed and manufactured by Eighteen Sound in Italy - is a high output neodymium driver featuring a 65 mm Interleaved Sandwich Voice coil (ISV) designed to improve sensitivity and dispersion.

A single demodulating ring (SDR) minimises distortion.

Precision-made 24 mm 18 mm and 15 mm Baltic birch plywood cabinet (up to 15-ply) and finished with durable paint for touring and rental use.

The LF driver has a humidity resistant paper cone.

Reinforced V-Slot grille reduces internal vibration noise.

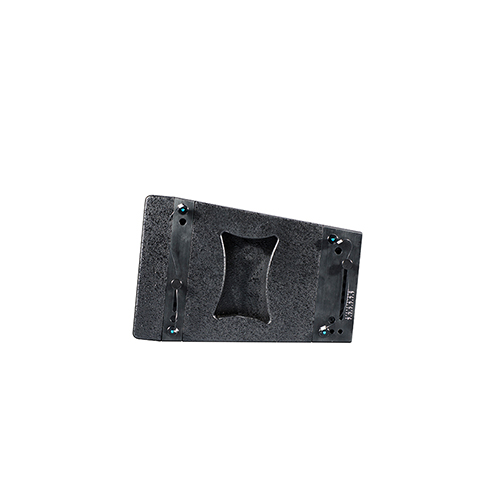

The integrated rigging system has a 7:1 safety coefficient.

Designed for a multitude of fixed-installation applications and outdoor use.

Recommended for use with ATL18B S118B WS118B AT218B and T18B-V2 Subwoofers.

SPECIFICATIONS

Frequency Response	80Hz - 18Hz (+- 3dB) / 70Hz - 20Hz (- 10dB)
Dispersion ( H x V )	100° x 10°
Sensitivity (1W / 1m)	HF: 109dB LF: 103dB
SPL (1m)	HF: 127dB (Continuous) / 133dB (Peak) LF: 127dB (Continuous) / 133dB (Peak)
Driver	LF: 1 x 10" Neodymium / 65mm Voice Coil HF: 1 x 3" Neodymium / 75mm Voice Coil
Enclosure	Phase Inverted
Fittings	AT110 - V2 FK
Power Rating (AES)	HF: 75W LF: 350W
Nominal Impedance	HF: 16 ohm LF: 16 ohm

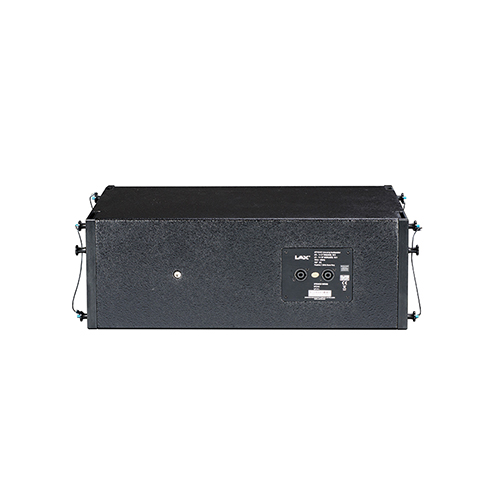

Connectors	NEUTRIK NL4MP x 2 HF:2+2- LF: 1+1-
Dimensions (W x D x H)	593 x 410 x 272 mm
Net Weight	23 kg

ACCESSORIES

TYPE	ITEM NUMBER	DETAILS	IMAGE
Flying Kit	AT110 - V2 FK	Flying Kit for AT110 - V2 (maximum 16 boxes)	View
Flight Case	AT110 - V2 FLC	Flight Case for AT110 - V2 (4 in 1)
Flight Case	AT110 - V2 - FK - ATL118B FLC	Flight Case for 1 of ATL18B + 1 of AT110 - V2 FK Flying Kit (2 in 1)
Flight Case	CB - LA FLC	Flight Case for Line Array System Cables (1200 x 600 x 600 mm)
Cable	CB3004NL4	Cable 30 Matre 4 core (4 x 2.5 mm) with 4 pole NEUTRIK connectors (NL4FX) for AT110 - V2
Cable	CB0104NL4	Cable 1 Metre 2 core (4 x 2.5 mm) with 4 pole NEUTRIK connectors (NL4FX) for AT110 - V2
Cable	GB2002NL4	Cable 20 Metre 2 core (2 x 4 mm) Speaker cable with 4 pole NEUTRIK connectors (NL4FX) for ATL18B
Power Cable	CB500506AC	50
