ATL18B
  • Info
  • Specifications
  • System Accessories
  • Measurement Data
  • Downloads

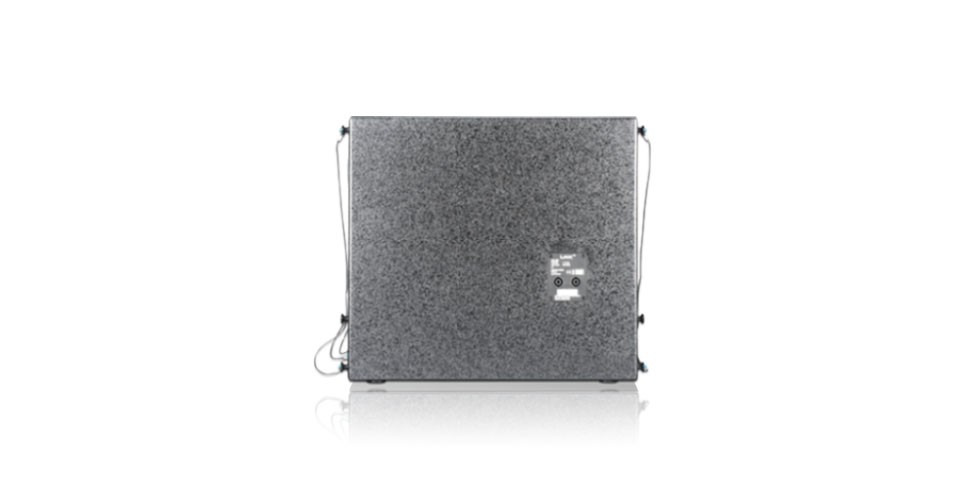

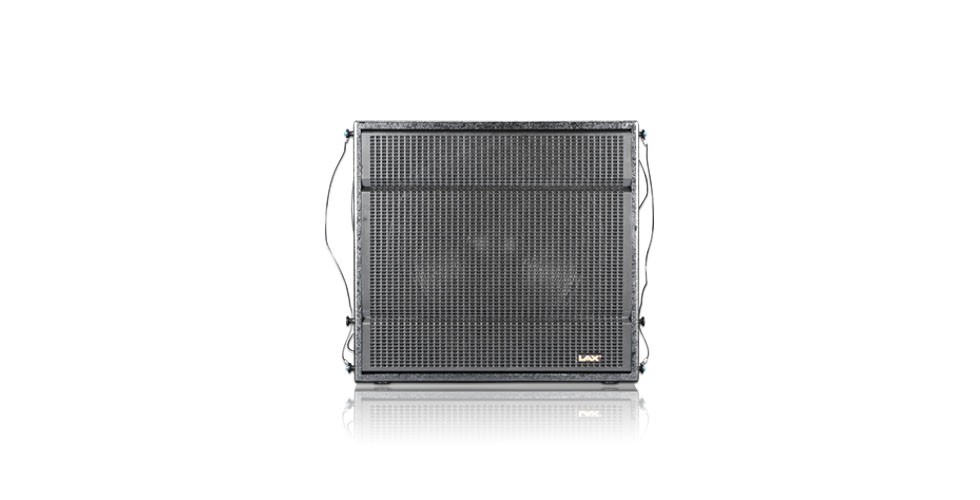

ATL18B

Single 18" Subwoofer

APPLICATIONS

The ATL18B is a single 18" subwoofer designed to be flown with the ATEC AT110-V2 Line Array System. The ATL18B can also be ground stacked and used with all LAX line array systems portable full-range and installation speakers. It is a very flexible subwoofer which can be used in a several convenient configurations.

FEATURES

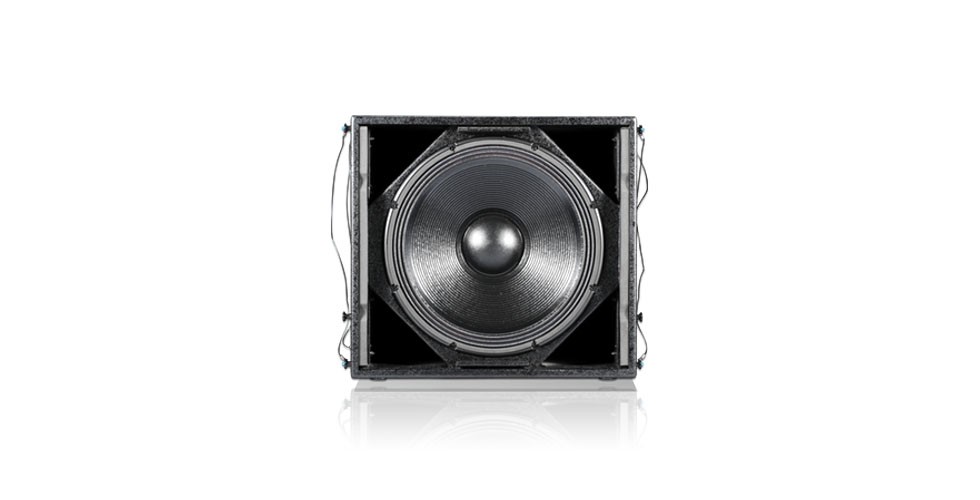

  • Powerful 900 W subwoofer featuring a single 18" driver with a 100 mm (4") dual layer voice coil providing more surface area for strength and durability.
  • Precision-made 15-ply 24 mm and 11-ply 18 mm Baltic birch plywood cabinet with a durable paint finish for touring and rental use.
  • Optimized cabinet structure designed to reduce unwanted resonances and airflow noise.
  • Low frequency extends down to 30 Hz (@ -10dB).
  • The LF drivers features a humidity resistant paper cone.
  • The integrated rigging system has a 7:1 safety coefficient.
  • Designed for touring outdoor concerts stadiums fixed installation and for all demanding sound reinforcement applications.
  • Designed to be flown in ATEC AT110-V2 Line Array Systems.
  • Recommended for ground stacking with all ATEC and Novo Line Array Systems AR Curve Array Systems FP TH900 and all full-range speaker systems.



SPECIFICATIONS

Frequency Response 40Hz - 150Hz (+- 3dB) / 30Hz - 20Hz (- 10dB)
Sensitivity (1W / 1m) 98dB
SPL (1m)
127dB (Continuous) / 133dB (Peak)
Driver

LF: 1 x 18" Ferrite woofer / 100 mm Voice Coil

Enclousure

Phase Inverted

Fittings AT110-V2  FK
Power Rating (AES)
900W
Nominal Impedance 8 ohm
Connectors
NEUTRIK NL4MP x 2  LF: 2+2-
Dimensions (W x D x H) 641 x 835 x 551 mm
Net Weight

61 kg






ACCESSORIES

TYPE ITEM NUMBER DETAILS
Flight Case
AT110 - V2 - FK - ATL118B FLC

Flight Case for

1 of ATL18B + 1 of AT110-V2 FK Flying Kit (2 in 1)

Cable
CB2002NL4

Cable 20 Metre 2 core (2 x 4 mm) Speaker cable

with 4 pole NEUTRIK connectors (NL4FX) for ATL18B
